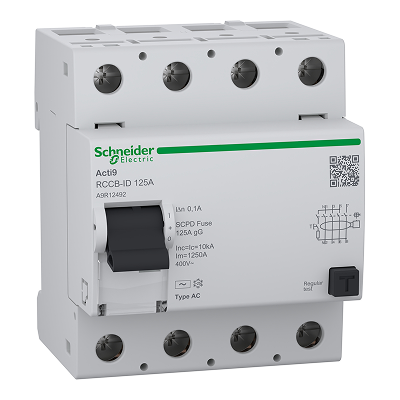

– A9R12492 is a 4P residual current circuit breaker with 125A In rated current, a sensitivity of 100mA with a AC type protection class.

– Padlockable in OFF position by addition of a padlocking accessory.

– Compatible only with 4P PowerTag Energy.

– Protects against electrical shock by indirect contact.

– Tripping technology is voltage independent.

– Instantaneous tripping without time delay.

– The status of the product is indicated via the 3 position toggle and a front panel indicator : open with green indicator, closed with red indicator, tripped in fault with green indicator.

– This product is compliant with IEC/EN 60947-1 and -3, IEC/EN 61008-1 and -2-1 standards. It has the VDE and CE quality labels. The (Im/IΔm) rated breaking and making short circuit capacity is 1250A.
